NDS5015 series has the following types

Types	Rated voltage	Operating voltage range	Rated current	Input power	Rated speed	Maximum air volume		Maximum static pressure		Noise
	[V]	[V]	[A]	[W]	[RPM]	[m3/h]	[CFM]	[mmAq]	[Pa]	[dB(A)]
NDS5015D12XA	12	5~13.8	0.07	0.84	4000	18.00	10.5	2.97	29.1	27.4
NDS5015E12XA	12	5~13.8	0.10	1.20	5000	21.78	12.8	4.47	43.8	31.0
NDS5015F12XA	12	5~13.8	0.14	1.68	6000	26.64	15.6	6.23	61.0	34.7
NDS5015G12XA	12	5~13.8	0.20	2.40	7000	31.14	18.3	8.26	80.9	38.9
NDS5015H12XA	12	5~13.8	0.26	3.12	8000	35.70	21.0	10.60	103.9	42.7
NDS5015J12XA	12	5~13.8	0.30	4.20	9000	40.50	23.8	13.00	127.4	45.3

Motor optional function table

Motor protection

RP	SS	AS	CL	OV	CS
反接保护	软启动	锁定保护	限流保护	过压保护	恒速保护
默认	默认	默认	可选	可选	可选

Signal output

FG	RD	LD
转速侦测	停转告警	设定告警
可选	可选	可选

Speed regulation mode

PPWM	VPWM	TC	RC
占控比调速	电压调速	温控调速	电阻调速
可选	可选	可选	可选

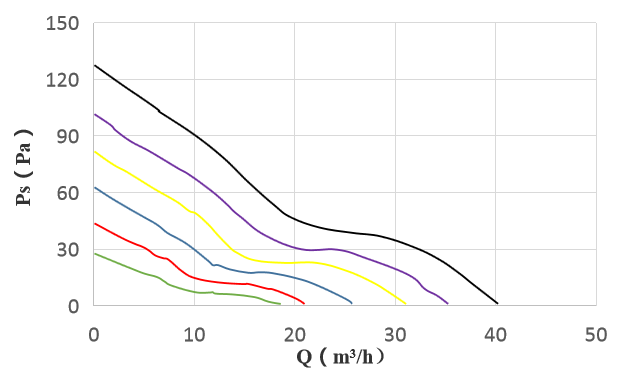

Curves

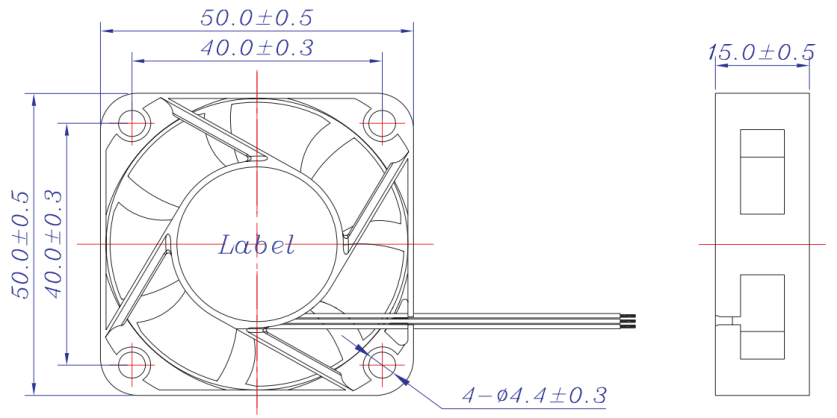

Product drawing
